Central console

1. Jack_Sax Regular Poster Joined: Sep 2007 Chichester Posts: 281 Saxo Vtr

   #1 21st September 2007, 10:58

   Alright guys trying to get mine out but cant seem to do so.

   Any help on getting it out to replace it?

   Jack
2. Jungle_Jimm Forum Section Moderator Joined: Jan 2004 Abingdon, Oxfordshire, United Kingdom (England) Posts: 5082 RX8, Cliosport 197

   #2 21st September 2007, 11:18

   which one are you refering too the gear stick surround console or the centre console in the dash with the radio etc.

   to remove the dash centre console there are 5 screws, one at the bottom, 2 part way up and one at each end of the row of switches behind the blanking plates (triangle shaped ones).

   the gearstick surround is just held in by one screw, pull up the gaitor from the bottom of the gearstick so it comes unclipped then take out the screw and wiggle it out
3. Predator_R32p Super Moderator Joined: Mar 2003 Durham (England) Posts: 37932 1. AX 2. Mk2 Saxo VTR 3. MK4 R32 DBP

   #3 21st September 2007, 11:36

   could also try a search too
4. betty02 Saxperience Post Whore Joined: May 2007 Blackpool Posts: 7123 MK5 Golf GTi FSi

   #4 21st September 2007, 11:39

   Hwey go pred, btw pred get anoda bird in ur avy, sick of seeing dat 1 now!! Im reying on you mate!

   Your probs answer will be as jungle jim stated



   Quote:

   to remove the dash centre console there are 5 screws, one at the bottom, 2 part way up and one at each end of the row of switches behind the blanking plates (triangle shaped ones)

5. Predator_R32p Super Moderator Joined: Mar 2003 Durham (England) Posts: 37932 1. AX 2. Mk2 Saxo VTR 3. MK4 R32 DBP

   #5 21st September 2007, 11:44

   Quote:

   Originally Posted by betty02 Hwey go pred, btw pred get anoda bird in ur avy, sick of seeing dat 1 now!! Im reying on you mate! Your probs answer will be as jungle jim stated

   are you drunk??
6. vipergfx Saxperience Forum Bum Joined: Oct 2006 Washington Posts: 3117 veeteeess

   #6 21st September 2007, 12:13

   He wants to see porn in your avatar.. seedy little man
7. betty02 Saxperience Post Whore Joined: May 2007 Blackpool Posts: 7123 MK5 Golf GTi FSi

   #7 21st September 2007, 12:19

   Viper don't pretend you dont haha, nah im not this time actually! give it a few hours haha!
8. Jack_Sax Regular Poster Joined: Sep 2007 Chichester Posts: 281 Saxo Vtr

   #8 21st September 2007, 13:40

   Quote:

   Originally Posted by Jungle_Jim to remove the dash centre console there are 5 screws, one at the bottom, 2 part way up and one at each end of the row of switches behind the blanking plates (triangle shaped ones).


   Thats the one mate, cheers.

   I cant see the screws though do u have to move anything to get to them or are they somewhere hidden?
9. furioALm Forum Section Moderator Joined: Sep 2005 Chinnor Posts: 3941 Audi A3

   #9 21st September 2007, 13:47

   Here you go buddy:

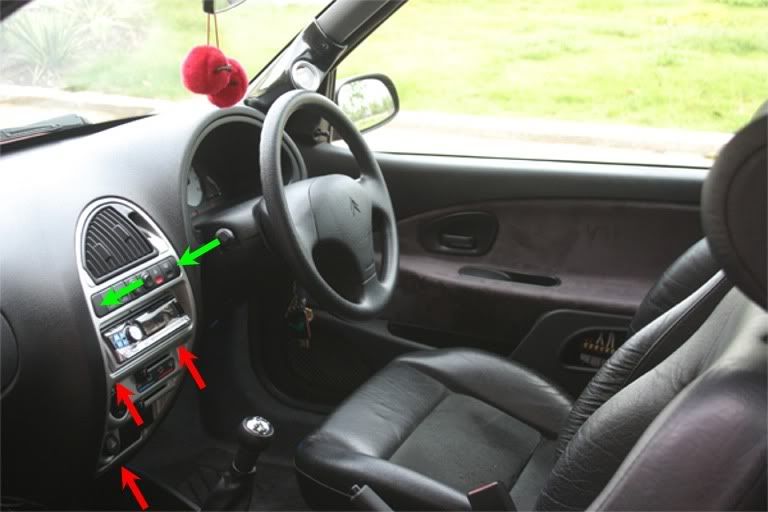

   There are 5 torx screws, their positions are indicated by the arrows... the green ones at the top, you need to use a flat head screwdriver to prise out the blanking covers, then the screws are accesible.. the red ones should be clearly accessible as they are not covered...



   Hope that helps
   Alex

10. Jack_Sax Regular Poster Joined: Sep 2007 Chichester Posts: 281 Saxo Vtr

    #10 21st September 2007, 14:29

    Perffect as always mate!
