Help false Floor

1. user_22085 Frequent Poster Joined: Mar 2008 Sheffield Posts: 574 98'SaxoVTR 88' R5 GTT

   #1 9th August 2008, 21:51

   Really need some help with my false floor went to b&q today and came out in tears some one help
   Sully
2. user_19702 Saxperience Forum Bum Joined: Dec 2007 Kendal, Cumbria Posts: 2728 White mk1 VTS

   #2 10th August 2008, 02:03

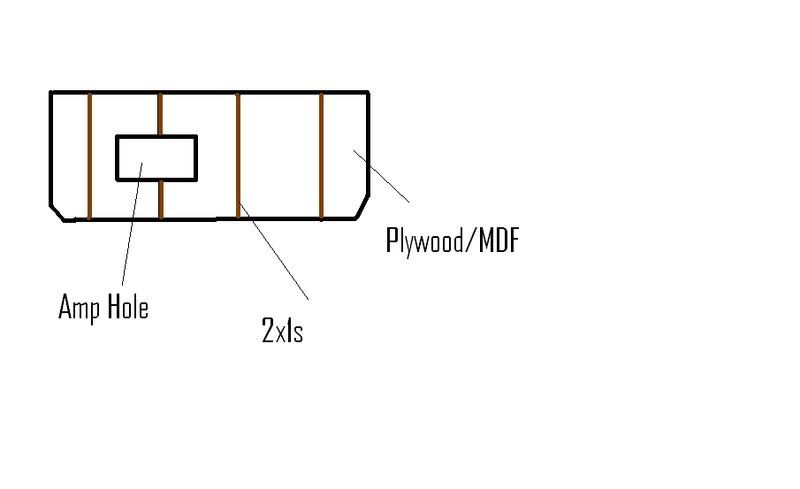

   Ok well youll need some planks of wood to raise it.....depending how high you want it depends on the wood....you want a 2" raise a 2x1 will be fine...then most people use MDF or plywood would work....now measure from the back of the seats to the edge of the boot... then cut the 2x1 about 2" less...you will need atleast 2 of these but 4 would be better....then cut the plywood or mdf to the size and shape of the boot, if you want a amp under it (which i presume you do) then cut a hole for the amp....now....nail the 2x1s evenly on the underside of the ply or mdf....and the cover with what ever you want...and screw the amp in underneith and slide the whole thing in....not sure if that helped....so heres a diagram of undernieth it (bit you wont see)

3. user_20080 Saxperience Hardcore! Joined: Dec 2007 smurfland. Posts: 17346 Ex saxo owner.

   #3 10th August 2008, 12:15

   Could you not take out the black plastic/rubber cover on the boot floor & use it as a template?


   Steve.
4. gazwhittle Saxperience Forum Bum Joined: Jun 2008 Wigan Posts: 2820 Citroen C2 Rthym Soon to be VT* upgrade.

   #4 10th August 2008, 12:18

   wanna know what i did .... I got two 6 inch long pieces of 2x2 and screwed them into the side of the boot around 7 inch from the bottom. ive still got all the template to make the mdf sit flush at that height if you want me to post them to you ?
5. gazwhittle Saxperience Forum Bum Joined: Jun 2008 Wigan Posts: 2820 Citroen C2 Rthym Soon to be VT* upgrade.

   #5 10th August 2008, 12:20

   ill upload pics later to show u plus it give you alot more space underneither. which comes in handy when your a roofer working out of your car
6. user_22085 Frequent Poster Joined: Mar 2008 Sheffield Posts: 574 98'SaxoVTR 88' R5 GTT

   #6 10th August 2008, 12:56

   All people who have helped have been repped should have mentioned this is to cover the boot and rear bench
   Sully
7. stu-n-shell Saxperience Forum Bum Joined: Feb 2007 Perth Posts: 4798 posi blue desire vt lookalike

   #7 10th August 2008, 13:06

   i will be doing this soon for the boot i will be taking a template from the boot carpet and for the bit where the rear bench was i will be making a template from cardboard hope this helps remember the higher you want your false floor the smaller it will have to be as the boot gets smaller the higher you go if that makes sence.
8. user_22085 Frequent Poster Joined: Mar 2008 Sheffield Posts: 574 98'SaxoVTR 88' R5 GTT

   #8 10th August 2008, 13:37

   Thanks mate repped
   Sully
9. gazwhittle Saxperience Forum Bum Joined: Jun 2008 Wigan Posts: 2820 Citroen C2 Rthym Soon to be VT* upgrade.

   #9 10th August 2008, 13:41

   also higher up you go the shape of the boot changes, so when you draw around the carpet it doesnt fit snugg
10. user_19702 Saxperience Forum Bum Joined: Dec 2007 Kendal, Cumbria Posts: 2728 White mk1 VTS

    #10 10th August 2008, 18:22

    Quote:

    Originally Posted by SaxoSully All people who have helped have been repped should have mentioned this is to cover the boot and rear bench Sully

    Just make the 2x1s longer, and the template in 2 bit
11. user_22085 Frequent Poster Joined: Mar 2008 Sheffield Posts: 574 98'SaxoVTR 88' R5 GTT

    #11 10th August 2008, 20:13

    Gaz could you send those templates
    Sully
