Wanted: pics of different suspension and brake setups

1. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

   #1 11th January 2007, 20:08

   Ok these pics need to meet these exact criteria to be of use to me

   Need pics of:

   All with 15" alloys preferably std vts ones:

   30, 40, 50 and 60mm lowering, and anyone with coilovers can add pics too. Need some side on pics, must be dead on sideways or close, no silly angles ta. Also wouldn't mind some from the front again on level ground and from straight ahead.

   std VT* front brakes, std with decent disks, 266mm conversion(206/306), 283mm conversion(306/206 gti180/307) and 4 pots, again looking straight on at them.

   Please only submit pictures you are happy to have used in guides on here and SSC

   Cheers
   Alex
2. vtcarl Frequent Poster Joined: Dec 2006 telford, shropshire Posts: 968 E86 Z4 3.0 si coupe

   #2 11th January 2007, 20:30




   there you go alex. mines with eibach springs and gmax shocks. 30mm front 40mm rear.
3. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

   #3 11th January 2007, 20:34

   cheers, i'll photoshop the pics cos they are a bit dark to see the arch gaps and lip spoiler to floor gaps

   keep them coming, i would like as many pics as possible!
4. vtcarl Frequent Poster Joined: Dec 2006 telford, shropshire Posts: 968 E86 Z4 3.0 si coupe

   #4 11th January 2007, 20:36

   no probs mate hope they can help.
5. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

   #5 11th January 2007, 20:41



   this is a bit more like it lol didn't want to add any more brightness or contrast tho, needs a bit more warmness and saturation i think but will do for a guide lol
6. vtrrallygod Infrequent Poster Joined: Jul 2005 Posts: 212

   #6 11th January 2007, 20:41

   here gti 6 brakes behind 15's lowered 60mm front





7. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

   #7 11th January 2007, 20:44

   what make of springs and dampers dude?

   got any better pics? if not i'll work with them!
8. ets2k9 Saxperience Post Whore Joined: May 2006 Hednesford, West Mids Posts: 6230 Seat Leon Cupra R

   #8 11th January 2007, 20:46

   Quote:

   40mm spax at the front and 50mmish rear with std vtr brakes not that you can see them.

   Thats with coilovers and standard rear so probably of no use:



   My Willwood 4 pots:


9. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

   #9 11th January 2007, 20:47

   this is the sort of pic i want for brakes, nice and low camera so get a good view of brakes:





   etc etc
10. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #10 11th January 2007, 20:50

    cheers ets, think i can only use the pic with brakes, which is fine
    others are non level suspension so not suitable, many thanks though!
11. ets2k9 Saxperience Post Whore Joined: May 2006 Hednesford, West Mids Posts: 6230 Seat Leon Cupra R

    #11 11th January 2007, 20:51

    Yeah I thought the others were shite but they were in my photobucket and any excuse to post some pics
12. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #12 11th January 2007, 20:55

    haha it's all good
13. Mark51p Super Moderator Joined: Sep 2006 Wakefield Posts: 14427 Golf GT

    #13 11th January 2007, 21:17

    lowered 40mm all round with steel grey vts rims, looks lower on back becasue of subs


    standard size discs drilled and groved (the marks on the alloys is just polish)




    hope that helps
14. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #14 11th January 2007, 21:34

    yup can use 2 of those pics ta
15. user_13343 Infrequent Poster Joined: Jan 2007 south wales area Posts: 170 ax cascade ax debut - track/rally

    #15 11th January 2007, 21:39

    you want a pic of a standard vtr setup on 14" alex old boy?
16. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #16 11th January 2007, 21:40

    may as well jon
17. user_13343 Infrequent Poster Joined: Jan 2007 south wales area Posts: 170 ax cascade ax debut - track/rally

    #17 11th January 2007, 21:43

    ill sort one out once i get the camera,

    oh and clean the car - lol
18. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #18 12th January 2007, 09:59

    bump!

    come on there are loads of people on here, be ASWs and post pics of your cars
19. Yates Saxperience Hardcore! Joined: Mar 2005 Pompey/Darlo Posts: 31546 MK1 - 1.1 Animal

    #19 12th January 2007, 10:16

    Lowered on Billies with custom springs





    Set up on the car



    GTI-6 Front Discs


20. l1ukeRS Saxperience Forum Bum Joined: Oct 2005 Telford United Kingdom (England) Posts: 3962 Focus RS Saxo Vtr

    #20 12th January 2007, 10:27




    lowered 40 front and 50 rear on gmax kit
21. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #21 12th January 2007, 11:58

    Cheers guys

    what length and rate are those springs matt?
22. CampDavid Saxperience Post Whore Joined: May 2006 Bedford Posts: 7457 Saxo VTS Peugeot 306 GTI-6 Astra SRI

    #22 12th January 2007, 12:03



    Hi Specs
23. CampDavid Saxperience Post Whore Joined: May 2006 Bedford Posts: 7457 Saxo VTS Peugeot 306 GTI-6 Astra SRI

    #23 12th January 2007, 12:04



    15-20mm rock my cock drop
24. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #24 12th January 2007, 12:06

    stiltwalking

    my springs were 15mm shorter and my car still didn't sit 20mm lower than std
25. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #25 12th January 2007, 12:09


26. thadogg Established Member Joined: Jun 2006 Buxton, Derbyshire Posts: 1801 Impreza Sti PPP

    #26 12th January 2007, 12:38

    40mm Spax kit:



27. Ryanp Super Moderator Joined: Feb 2004 Tonbridge United Kingdom (England) Posts: 38236 Vtr, 172, throttle bodied track slut

    #27 12th January 2007, 14:00





    you know the set up me being an ASW
28. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #28 12th January 2007, 14:27

    could have posted a pic with clean wheels you anal pirate

    thats no use to me
29. Ryanp Super Moderator Joined: Feb 2004 Tonbridge United Kingdom (England) Posts: 38236 Vtr, 172, throttle bodied track slut

    #29 12th January 2007, 14:32

    if you need a pic of clean wheels ill go clean them. if you dont dont worry theyre staying dirty
30. AlexR Saxperience Post Whore Joined: Aug 2004 Kunt & Sorrey Posts: 5763 Rep mobiles & Joes ma

    #30 12th January 2007, 14:43

    i'm sure you have pics of them clean somewhere though, and no i'm not using pics of them dirty, could just use pics of mine lol
31. Ryanp Super Moderator Joined: Feb 2004 Tonbridge United Kingdom (England) Posts: 38236 Vtr, 172, throttle bodied track slut

    #31 12th January 2007, 14:47

    yes i have clean but not from the angle you wanted..

    if you want clean pics i can go and sort them.
32. FILVTR Regular Poster Joined: Oct 2006 Manchester Posts: 440 VTR '52.

    #32 12th January 2007, 15:18

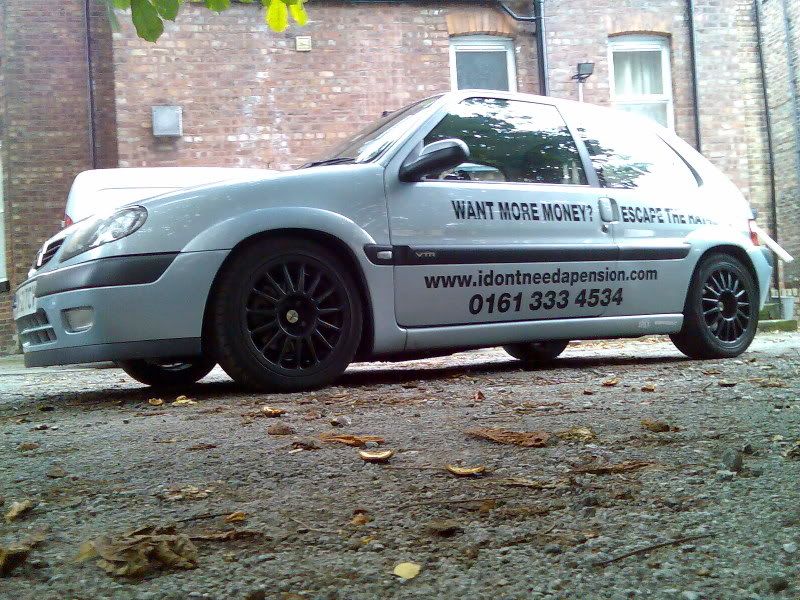

    Gmax shocks, Spax Springs - 40mm front, rear to match
33. CampDavid Saxperience Post Whore Joined: May 2006 Bedford Posts: 7457 Saxo VTS Peugeot 306 GTI-6 Astra SRI

    #33 12th January 2007, 15:23

    Matt's springs are 170lb, should be superb I think.

    My suspension will all be up for sale soon. Time for a diesel. Blub
34. stiffler69 Saxperience Post Whore Joined: Jun 2006 North East Posts: 5289

    #34 12th January 2007, 16:07




35. Mark51p Super Moderator Joined: Sep 2006 Wakefield Posts: 14427 Golf GT

    #35 12th January 2007, 16:30

    what size tyres are those??
36. stiffler69 Saxperience Post Whore Joined: Jun 2006 North East Posts: 5289

    #36 12th January 2007, 16:47

    Not sure whos you meam but ,myn are 45 profile
