What is this pipe for?

1. Vinootje Infrequent Poster Joined: May 2017 Posts: 119

   #1 4th November 2017, 18:18

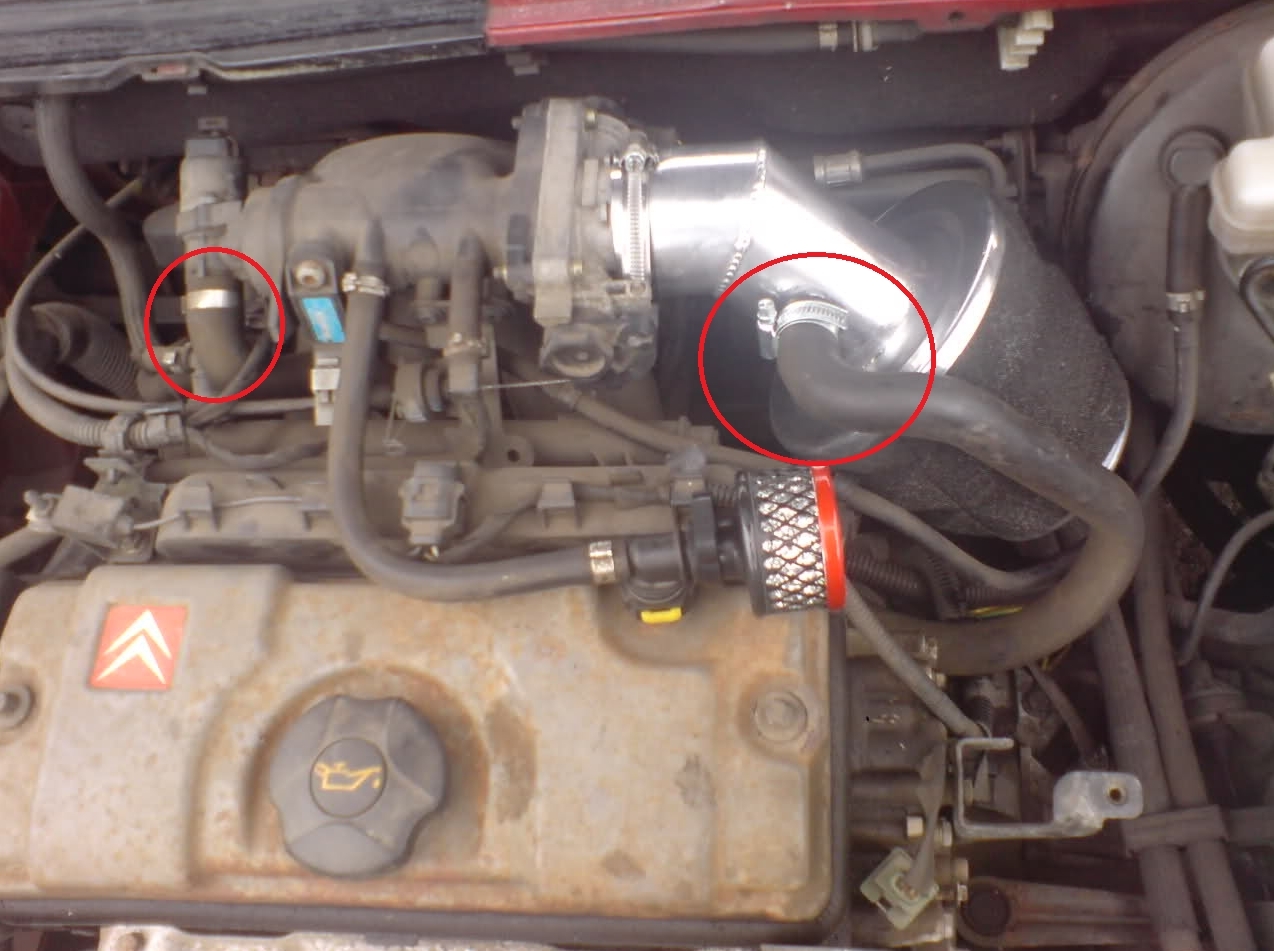

   So my Saxo 1.6 8v vts phase 1 also has this tube. This tube goe's to the left red circle.


   For what is that tube? i want to install a new bigger and better pipe and filter. Anyone knows the diameter of the throttle body ?
2. user_20080 Saxperience Hardcore! Joined: Dec 2007 smurfland. Posts: 17346 Ex saxo owner.

   #2 4th November 2017, 18:51

   Vacuum pipe,I believe.
3. welshpug Saxperience Forum Bum Joined: Jul 2010 South Wales Posts: 3078 ZX 16v, 205 GTI, 309 Goodwood, 405 MI16.

   #3 4th November 2017, 18:56

   idle valve.
4. Vinootje Infrequent Poster Joined: May 2017 Posts: 119

   #4 5th November 2017, 17:20

   Quote:

   Originally Posted by welshpug idle valve.

   Quote:

   Originally Posted by stevo67 Vacuum pipe,I believe.

   And what is it for? If i will replace my own intake pipe how do i connect that vacuum pipe to my intake if it doesn't have a hole for it and is it needed? what will happen without that pipe?
5. BackSheep L-plater Joined: Jun 2016 Suffolk Posts: 50 Saxo VTR 1.6 8v

   #5 6th November 2017, 11:02

   An old air filter on mine had the extra fitting but was instead hooked up to the oil breather.
6. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

   #6 6th November 2017, 23:10

   That's not a vacuum pipe, it's simply a fresh air feed for the idle control valve.

   Removing that pipe allows unfiltered air into your idle control valve. potentially it could jam in the long term.
7. user_20080 Saxperience Hardcore! Joined: Dec 2007 smurfland. Posts: 17346 Ex saxo owner.

   #7 7th November 2017, 17:35

   Quote:

   Originally Posted by MartinObviously That's not a vacuum pipe, it's simply a fresh air feed for the idle control valve. Removing that pipe allows unfiltered air into your idle control valve. potentially it could jam in the long term.

   Long time since i've worked on paxo's Martin.
8. Vinootje Infrequent Poster Joined: May 2017 Posts: 119

   #8 9th November 2017, 23:58

   Quote:

   Originally Posted by MartinObviously That's not a vacuum pipe, it's simply a fresh air feed for the idle control valve. Removing that pipe allows unfiltered air into your idle control valve. potentially it could jam in the long term.

   Thanks alot, so that pipe goes to the intake so the engine still gets a tiny bit of air while running idle (throttle body closed)?

   How can i do this the best if i want to replace the pipe from the throttle body to the intake filter?
9. welshpug Saxperience Forum Bum Joined: Jul 2010 South Wales Posts: 3078 ZX 16v, 205 GTI, 309 Goodwood, 405 MI16.

   #9 10th November 2017, 09:27

   buy one that is correct for your engine.


   oh wait, you already have one, you show it in your picture.
10. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

    #10 10th November 2017, 18:00

    Quote:

    Originally Posted by Vinootje Thanks alot, so that pipe goes to the intake so the engine still gets a tiny bit of air while running idle (throttle body closed)? How can i do this the best if i want to replace the pipe from the throttle body to the intake filter?

    Yes that's how it works.

    Just make sure you get a pipe from throttle body to filter with an adapter that allows you to connect it.
11. Vinootje Infrequent Poster Joined: May 2017 Posts: 119

    #11 11th November 2017, 13:47

    Quote:

    Originally Posted by MartinObviously Yes that's how it works. Just make sure you get a pipe from throttle body to filter with an adapter that allows you to connect it.

    Thanks!
    i wonder how this guy has done it?
    https://www.youtube.com/watch?v=dKQ55If7cAQ

    Same throttle body but i dont see the pipe going to the intake pipe.
12. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

    #12 12th November 2017, 11:52

    Quote:

    Originally Posted by Vinootje Thanks! i wonder how this guy has done it? https://www.youtube.com/watch?v=dKQ55If7cAQ Same throttle body but i dont see the pipe going to the intake pipe.

    The pipe is there is you pause and look carefully at about 5-6 seconds in

    it goes onto the bottom of the pipe in his video next to the silicone joiner right after the filter.
