OBD cable

1. Alexa L-plater Joined: Sep 2018 Posts: 95

   #1 26th October 2018, 18:54

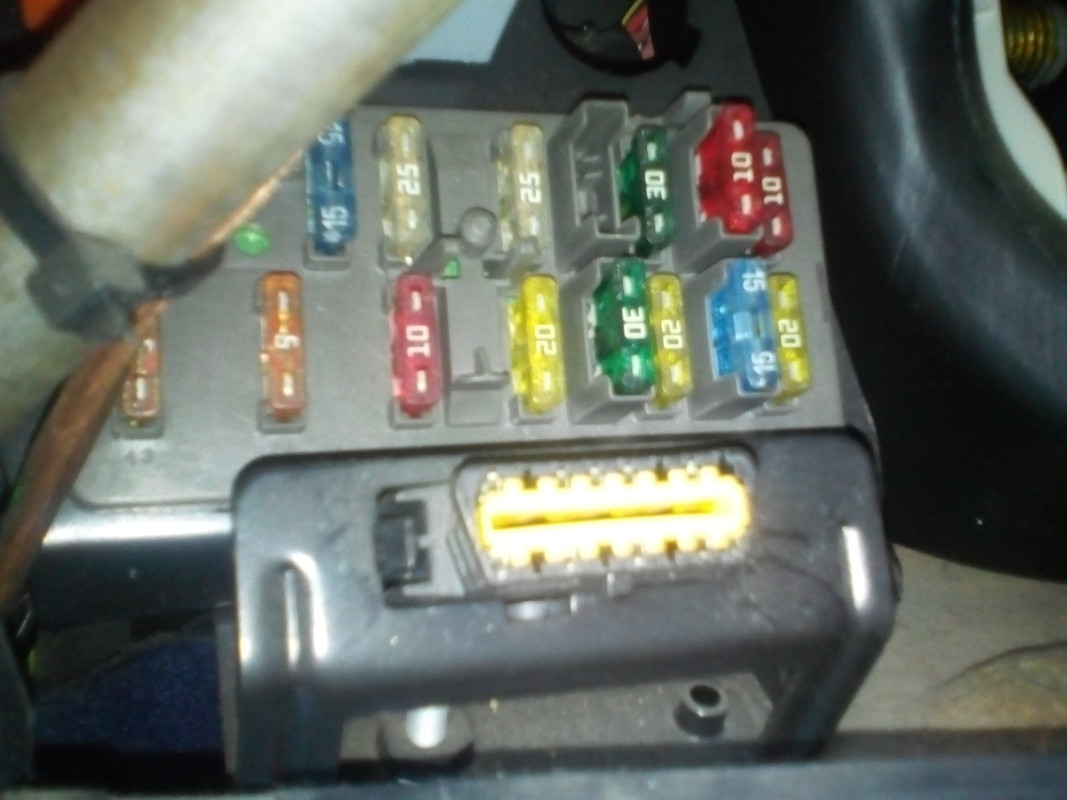

   First of all,sorry if I missed forum I don't know where to post it.I have OBD2 cable for autocom diagnostic and when I plug it nothing happens.I think my cable doesn't fit.

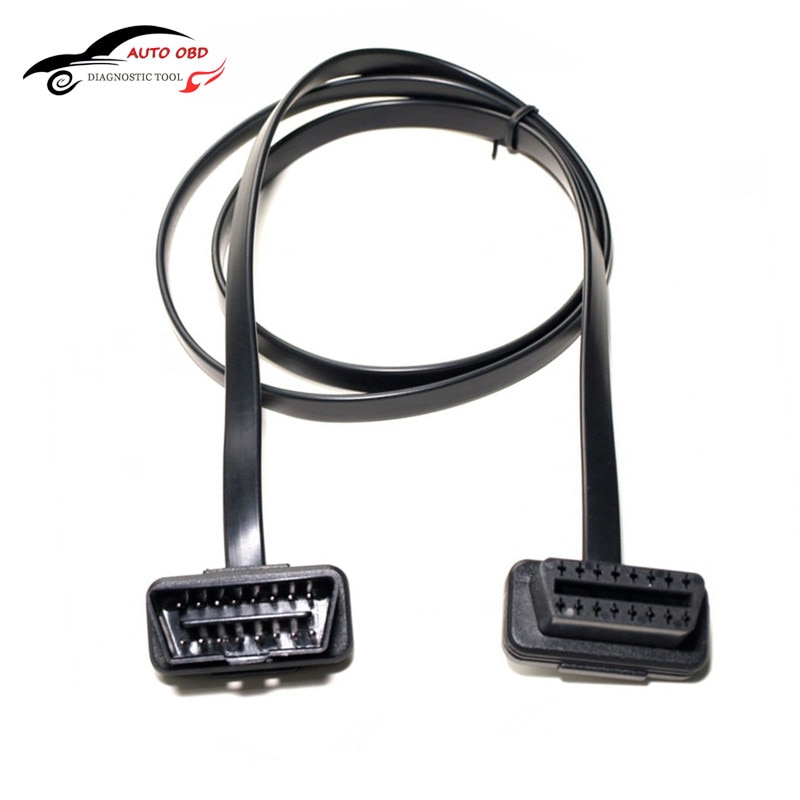

   Is this cable I should use it to bridge autocom cable and Saxo OBD port?


2. Alexa L-plater Joined: Sep 2018 Posts: 95

   #2 26th October 2018, 18:59

   Autocom cable


3. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

   #3 26th October 2018, 23:32

   It will fit, it's just tight.

   However, only 3 plug ECU models have OBD2, earlier versions of ECU need Peugeot Planet or DiagBox with a Lexia cable.
4. Alexa L-plater Joined: Sep 2018 Posts: 95

   #4 27th October 2018, 11:00

   Autocom cable fits too it's just doesn't see him.Delphi software has of course Saxo in his date base,only have to find right cable.



   I was looking for Lexia cables for older types and I found this

   https://www.obdinnovations.com/30-pi...ugeot-citroen/

   but this one I think is even for older cars.

   Thanks Martin I will order cable from first post,I hope it will work.
5. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

   #5 27th October 2018, 11:06

   Sorry I misunderstood your original post!

   Delphi should be able to read the ECU.

   Try the first cable and see what happens
6. Alexa L-plater Joined: Sep 2018 Posts: 95

   #6 27th October 2018, 11:34

   I need to order first online.However here in product description lexia PP2000 OBD-II connector cable it's like mine (autocom) and it supports Saxo.Am I missing something?


   https://www.aliexpress.com/item/2018...3-fd2d0619de70
7. Alexa L-plater Joined: Sep 2018 Posts: 95

   #7 20th November 2018, 13:17

   After doing some research recently I found out that these older protocols are the reason why some diagnostic devices are not able to do they job.
   You can check here what protocol it should support

   http://pinoutguide.com/CarElectronic..._pinout.shtml#

   Having said that ELM 327 v1.4 and older ver. can scan your car, I think it's the cheapest diagnostic tool.If your socket doesn't fit ELM 327 just find the right cable and you are back in business.
8. Alexa L-plater Joined: Sep 2018 Posts: 95

   #8 20th November 2018, 14:09

   Apparently ELM327 does not work for Diesel engine,abs and airbag system,so if anyone can confirm that it would be great.
9. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

   #9 20th November 2018, 14:11

   That's correct it doesn't work on diesel before 2004, any abs or airbag ecu.

   I've had a 106 diesel with ecu and it won't read it correctly.

   Quote:

   Originally Posted by Alexa Apparently ELM327 does not work for Diesel engine,abs and airbag system,so if anyone can confirm that it would be great.

   Sent from my SM-A500FU using Tapatalk
10. Alexa L-plater Joined: Sep 2018 Posts: 95

    #10 22nd January 2019, 17:56

    I tried to use ELM327 v1.5 and it is not recognized,it's like I didn't plug it at all.Engine was turned on.Can anyone tell me what may be the problem?
11. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

    #11 22nd January 2019, 19:42

    Quote:

    Originally Posted by Alexa I tried to use ELM327 v1.5 and it is not recognized,it's like I didn't plug it at all.Engine was turned on.Can anyone tell me what may be the problem?

    Yes as I explained already it won't work

    Do you have a problem with the car? the ecu has almost no control over anything engine related so if you have a running issue, it's not going to be showing on the ECU.
12. Alexa L-plater Joined: Sep 2018 Posts: 95

    #12 22nd January 2019, 20:31

    No problem, but engine warning light is on.It's petrol engine, so ELM should work because it supports necessary protocols.

    https://www.outilsobdfacile.com/vehi...e-obd2/citroen

    and some members on this forum confirmed that it works.
13. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

    #13 23rd January 2019, 00:10

    Oh i see I thought it was a diesel model, my mistake!

    I don't recognise an ELM version 1.5.

    Genuine chip version numbers are listed here https://www.elmelectronics.com/products/ics/obd/

    You need an adapter with a genuine ELM chip fitted to it. 1.3a/1.4b etc
14. Alexa L-plater Joined: Sep 2018 Posts: 95

    #14 23rd January 2019, 06:40

    Thanks Martin.
15. Alexa L-plater Joined: Sep 2018 Posts: 95

    #15 23rd January 2019, 18:36

    Do you think Lexia can work on any Saxo?I found some Chinese copies but they can't confirm ,only that it should work on most Citroen s.
16. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

    #16 23rd January 2019, 19:54

    Quote:

    Originally Posted by Alexa Do you think Lexia can work on any Saxo?I found some Chinese copies but they can't confirm ,only that it should work on most Citroen s.

    Yes it should definitely work with diagbox software.
17. Alexa L-plater Joined: Sep 2018 Posts: 95

    #17 27th January 2019, 19:15

    There is cheaper version of Lexia PSA-COM, but I didn't find much references from the users about it.

    http://www.obdtester.com/psacom
18. MartinObviously Saxperience Forum Bum Joined: Dec 2012 Perth Posts: 3665 Peugeot 106 1.1 Turbo Peugeot 106 1.5D Turbo Peuge

    #18 27th January 2019, 23:05

    That looks expensive, there are good clone lexia and diagbox on ebay!

    If not, ask around on some of the Facebook pages
